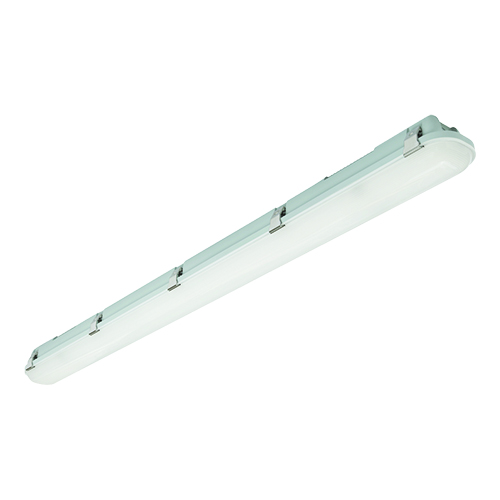

IPL‑LEDNU Series
Lumacell® IP65 linear LED fixtures
Lumacell’s new generation of IPL‑LEDNU Series linear LED fixture is an ultra-versatile product that offers customization of both lumen output and colour temperature at the installation site.
The base unit is designed with an industrial-grade polycarbonate lens and thermoplastic housing, accompanied by a high-efficiency LED driver. It is ideal for commercial and industrial applications.
Base model specifications
- Field-selectable colour temperatures: 3500K (warm/neutral white), 4000K (neutral white) and 5000K (cool white)
- Field selectable lumen output: 5000 lumens (40 watts), 6000 lumens (45 watts) and 7000 lumens (50 watts)
- Stainless steel hardware
- Ceiling, surface or pendant mounting
- 0-10V dimming standard on all models
- 120VAC to 277VAC universal
- Certified for wet and damp locations (not suitable for use in car wash applications)
- Expected life of 187,000 hours (L70)
- Power factor > 0.90
- ROHS compliant
- Meets IEEE C.62.41-1991 input transient protection
- 5-year limited warranty on all electronics and housing
Two options to add to the standard model
One or two options can be added: the motion sensor and the emergency LED driver option. The first option switches the fixture on as soon as it detects movement between four and 10 meters from the unit (for ceiling mounting). The emergency LED driver option provides emergency lighting in the event of a power failure, for a minimum of 30 minutes.
